Clean Room Panels
Engineered for performance, precision, and compliance — designed to meet global cleanroom standards across industries.
Clean Room Panels
A cleanroom is a controlled environment where pollutants like dust, airborne microbes, and aerosol particles are filtered out in order to provide the cleanest area possible. Most cleanrooms are used for manufacturing products such as electronics, pharmaceutical products, and medical equipment. As a part of SpectroKAVS, we have a reputation for high quality installations and standards of service. We have in-house expertise for extraordinary technical design and value engineering. With its remarkable expertise and an state-of-art production facility of about 80.000 sq.ft at Maharashtra, SpectroKAVS manufactures All types of Modular Partitions, Cleanroom Equipment, Containment Solutions and pharmaceutics process equipment.
Comprehensive experienced team in the pharmaceutical industry enables us to understand their requirements and present and cost-effective solutions allowing us to create the overall engineered scheme. SpectroKAVS has a skilled and highly experienced crew with extensive knowledge of cGMP/GMP standards.
Technical Details of HPL

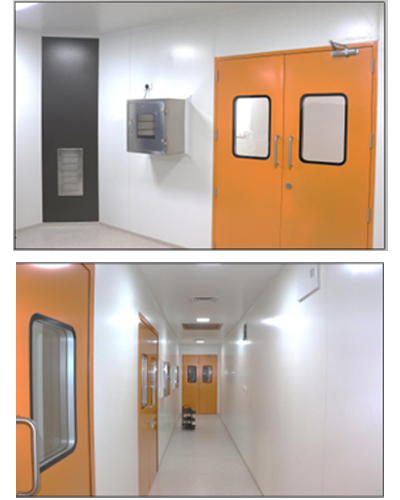

High Pressure Laminate
High Pressure Laminate is considered to be one of the most durable decorative surface materials and is available with special performance properties including chemical, fire and water resistance HPL panels are manufactured on CNC Machinery by our skilled professional team.
Advantages:
HPL in Cleanroom ?
The HPL surfaces are distinguished by some highly technical features, namely:
High mechanical resistance to impact, total resistance to water, chemical detergents, steam, impact and highly resistant to abrasion. Over 40 layers of kraft impregnated with melamine and phenolic resin. The 3 mm thick HPL panel has a transparent finish on both external sides that protects the decorative layer below. Solid, structured, unpainted material (the colour is part of the material). Antistatic and antibacterial given the nature of the product itself, HPL is used extensively in controlled contamination environments. The central dark brown layer consists of a series of kraft papers impregnated with phenolic resins, pressed to 9 MPa at 150°C. A protective PVC coating protects the panel during the production, transportation and installation phases. We chose to use HPL-grade products only when realising our cleanrooms, in accordance with standard EN438.
Insulation
Rockwool
Sheets of fireproof rock wool oriented perpendicular to the plane. Density 100 Kg/cbm, fire reaction class A1 (EN 13501-1) declared thermal conductivity (λ) = 0.037 W/mK (EN 12667 or 14303)
Polyurethane [ Pu ]
Infil of injectable expanded polyurethane. Density 42 – 45 Kg/cbm, fire reaction class B3(EN 13501-1 or DIN 4102) declared thermal conductivity (λ) = 0.022 W/mK (EN 12667)
Technical data on the external layer in HPL
| Thickness | 3 mm |
|---|---|
| Modular panel dimensions | 1300 x h3050 mm |
| Scratch and impact resistance (1-10) | Scratch and impact resistance (1-10) |
| Scratch and impact resistance (1-10) | 9 |
| Antistatic property (1-10) | 10 |
| Hygienic and easy to clean (1-10) | 10 |
| Humidity resistance: RH 25% – 100% (1-10) | 10 |
| Humidity resistance: RH 0% – 25% (1-10) | 5 |
| Fire resistance class | B-S1-D0 (EN 13501-1) FIREPROOF D-S2-D0 (EN 13501-1) STANDARD |
| PVC external protective film | Yes |
| Colour | 18 shades |

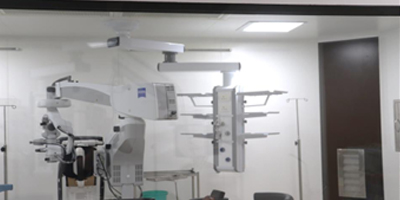

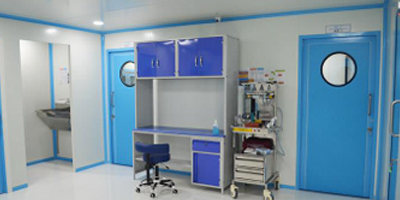

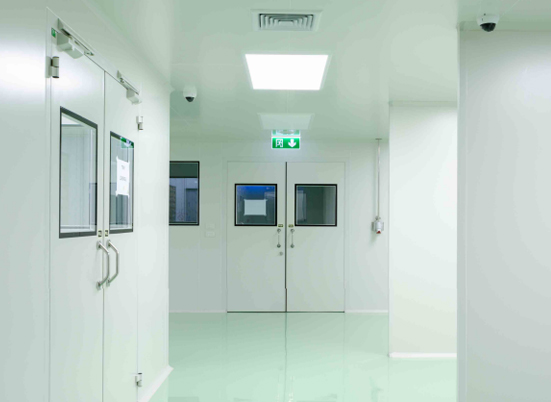

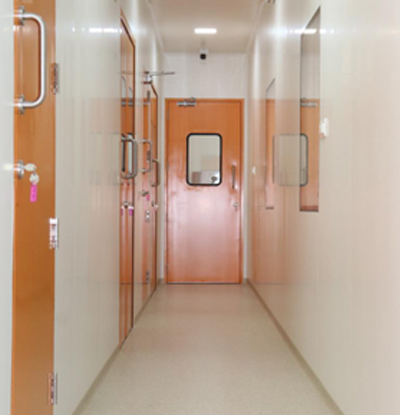

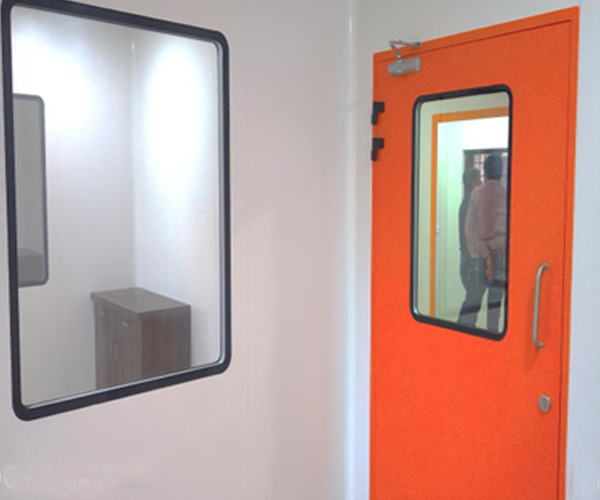

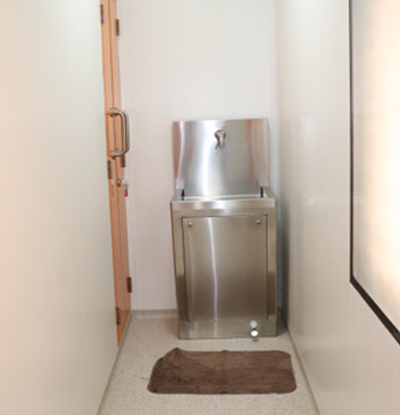

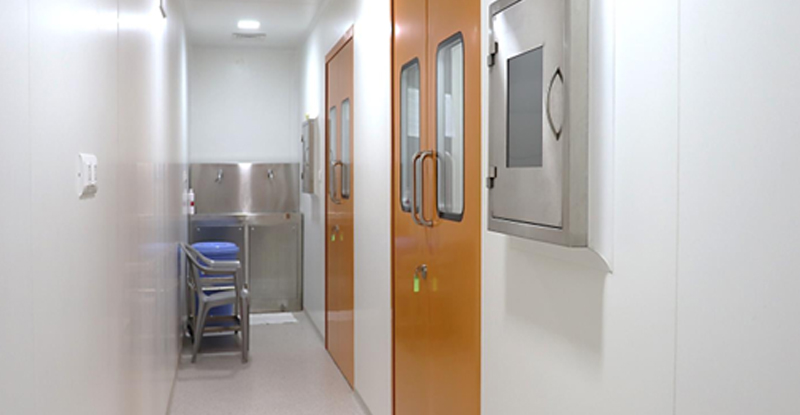

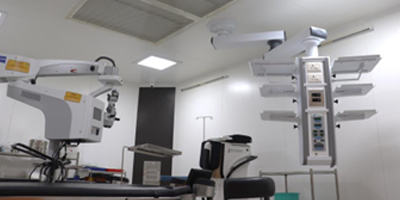

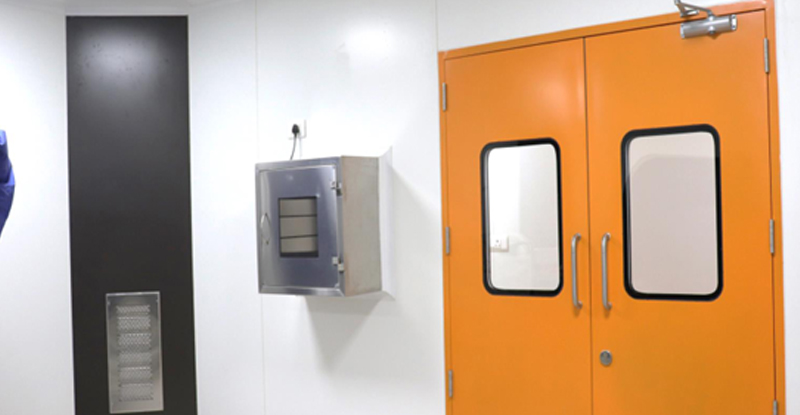

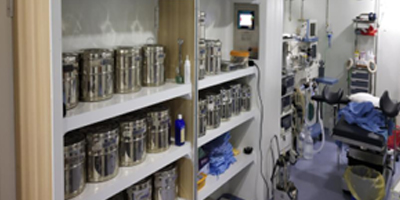

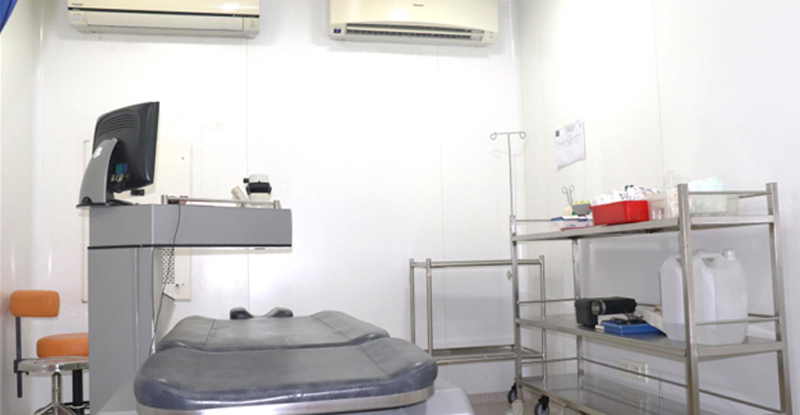

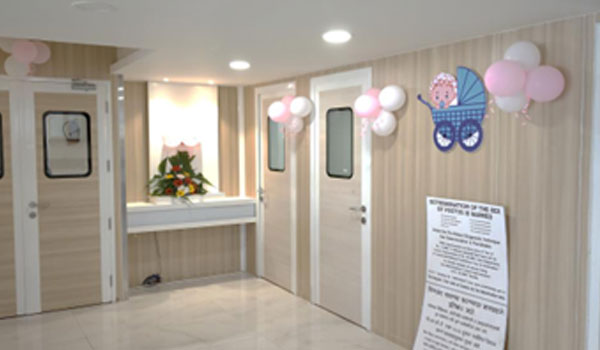

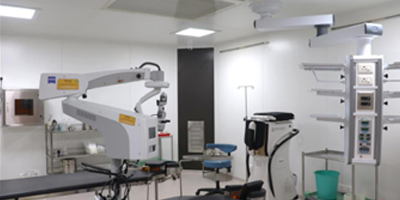

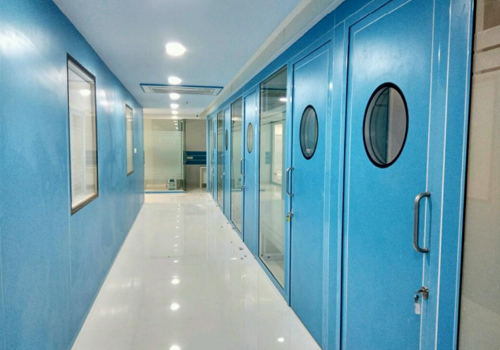

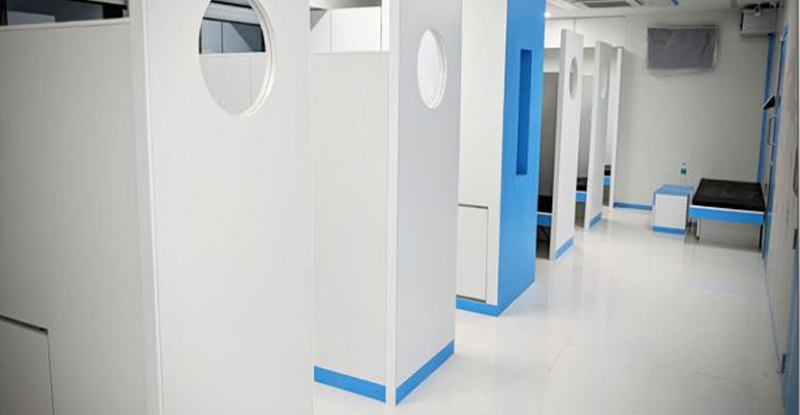

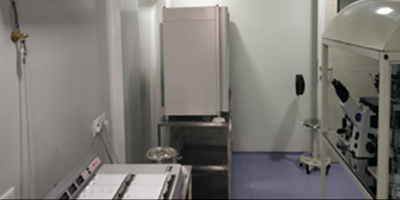

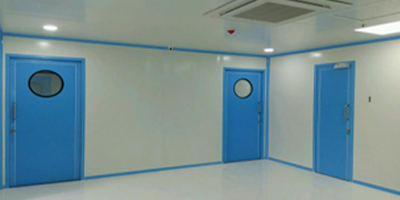

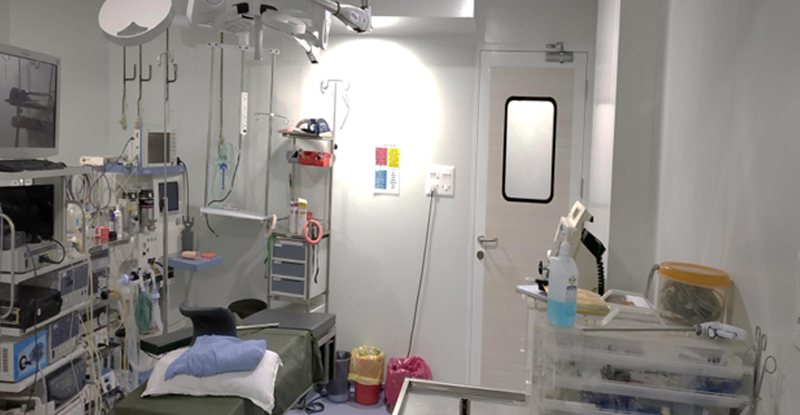

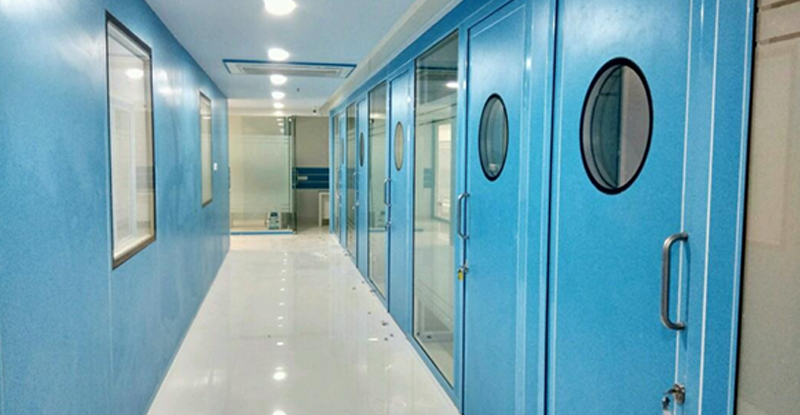

Gallery
DOWNLOAD BROCHURE (PDF)
Clean Room Panels in India: Trusted Suppliers, Price & Local Availability
In industries like pharmaceuticals, biotechnology, healthcare, and electronics, maintaining a contamination-free environment is not just important—it’s critical. One of the most essential components in any cleanroom setup is the clean room panels. These panels provide the foundation for a sterile, modular, and compliant space.
Whether you’re setting up a new cleanroom or renovating an existing one, choosing the right clean room panels supplier plays a crucial role in the overall performance and certification of your facility. In this blog, we’ll explore the importance of clean room panels, how to choose reliable suppliers, average prices, and how to find the best clean room panels in India or even near you.
What Are Clean Room Panels?
Clean room panels are specially designed, modular wall and ceiling structures used to construct cleanrooms. These panels are made using high-quality, non-shedding materials and offer features such as:
Smooth, non-porous surfaces
Resistance to chemicals and microbial growth
Easy-to-clean and maintain finishes
Anti-static, fire-resistant, and insulated properties
GMP, ISO, and FDA-compliant surface finishes
They are widely used in pharmaceutical manufacturing, hospitals, medical device factories, R&D labs, and food processing units.
Why Clean Room Panels Are Essential
Ensure hygiene and sterility: Prevents dust, microbes, and air particles from entering sensitive areas.
Modular design: Allows for quick installation, expansion, and customization.
Compliance-ready: Meets global cleanroom standards like ISO 14644, GMP, WHO, and US FDA.
Low maintenance: Durable surfaces that reduce cleaning effort and cost.
Choosing the Right Clean Room Panels Suppliers
Not all clean room panels suppliers offer the same quality or technical expertise. Here’s what to look for when selecting a supplier:
Material Variety: Choose suppliers offering a range of core materials (Puff, Rockwool, EPS, etc.) and finishes (GI powder-coated, stainless steel, HPL-coated).
Compliance Knowledge: Ensure they understand and follow industry standards for pharmaceuticals and healthcare.
Installation Support: Leading suppliers like Spectrokavs not only deliver panels but also handle design, installation, and validation.
Custom Sizes & Designs: The ability to offer custom panel sizes, cutouts for utilities, and integrated accessories.
Clean Room Panels Price in India
If you’re searching for clean room panels price, know that costs can vary depending on multiple factors:
Type of Panel Average Price (per m²)
Puff Panel (50mm) ₹1,200 – ₹1,800
Rockwool Panel (50mm) ₹1,600 – ₹2,500
Stainless Steel Panels ₹2,800 – ₹4,500
Note: Prices may vary based on thickness, finish, core material, fire resistance, and insulation properties. Always request a detailed quote based on your cleanroom class, size, and compliance needs.
Looking for the best clean room panels price? Contact Spectrokavs for custom estimates tailored to your project specifications.
Clean Room Panels India: Why Spectrokavs Leads the Market
If you’re sourcing clean room panels in India, Spectrokavs stands out as a leading supplier and manufacturer. Here’s why top pharma brands trust us:
Made in India with global quality standards
Fast delivery and installation support nationwide
In-house design, engineering, and validation
ISO 14644, WHO-GMP, and US FDA compliant panel systems
Project-based customization for pharmaceutical, biotech, and hospital clients
With manufacturing and supply capability across metros and industrial hubs, we serve clients pan-India with reliable, durable, and certified cleanroom solutions.
Clean Room Panels Near Me – Local Supply, Global Standards
Wondering where to get clean room panels near me? Spectrokavs offers quick response and supply chains across India, including:
Mumbai
Hyderabad
Pune
Ahmedabad
Bengaluru
Chennai
Delhi NCR
Wherever your project is based, our network ensures that expert guidance and high-quality panels are just a call away.
Conclusion
Clean room panels are the foundation of any controlled environment—and choosing the right clean room panels suppliers ensures long-term compliance and performance. Whether you’re researching the price, checking availability in India, or searching for reliable providers near you, Spectrokavs has everything you need to build a world-class cleanroom.
